IPES IR4000

Flame Detectors

IPES IR4000

SKU #100-0018-SS; #100-0018-AL
  • SIL 3 Certified

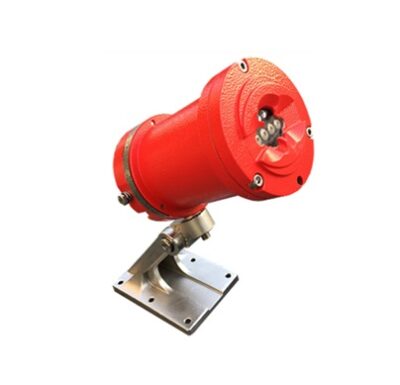

The state-of-the-art multi-spectral infrared technology of ESP Safety‘s Model IPES-IR4000 Flame Detector affords the highest sensitivity in detecting flames from combustible vapors gases within its 120° conical field of view.
IPES-IR4000’s advanced detection technology ensures rapid flame recognition and alarm signaling. In addition, IPES-IR4000’s selective, multi-spectral technology virtually eliminates false alarms. It ignores false triggers from sources such as direct or indirect sunlight, arc welder flash, resistive heaters, fluorescent, halogen, and incandescent light.
IPES-IR4000 sends an alarm only when data from multiple different IR wavelengths agree that a flame or fire is present in the field of view. Upon confirmation of flame or fire, the IPES-IR4000 transfers alarm signals to receiving control devices located in control and operations rooms and to fire alarms and burglar/fire alarm systems.

The IPES-IR4000 Flame Detector is constructed with an explosion-proof housing for use in hazardous (classified) locations.

REQUEST QUOTE DOWNLOAD PDF
red flame icon
Multi-spectral IR detection
The highest level of flame and fire sensitivity
red flame icon
Low Power Consumption
Power consumption of <3W means low power cost
red flame icon
Long Detection
Detection Range of 345 feet maximizes protection area
red flame icon
5 Year Warranty
Long reliable product life, low cost to operate over time

Electrical Specifications

Supply Voltage: +24VDC Nominal (=18 to 32VDC)

Power Consumption:
•Standby: <2W
•Alarm: <3W
•With heater on maximum: <7.5W

HART Communication: Compatible with HART Protocol7

Digital Outputs: RS485 Modbus, RTU

Relay Contact:
•Fire Alarm: One normally open / normally closed (NO/NC) user selectable, latching or non-latching.
•Fault: One normally open / normally closed (NO/NC) user selectable Normally Energized

Wiring: 14 AWG (2.08 sq.mm) or 16 AWG (1.31 sq.mm) Shielded cable is recommended

Terminals: 14 AWG – 2.5 sq.mm

Functional Specifications

Wavelengths: 4.0 to 5.0um

Detector Range-Distance: Maximum 345ft (105m), depending on detected fuel

Cone of Vision: 120 degrees (horizontal/vertical)

Response Time: 3 seconds

Mechanical Specifications

Material: Stainless Steel (Grade 316) or copper free Aluminum

Conduit Connection: Two (2) M20 X 1.5, adaptable to ¾” NPT

Dimensions: 3.94”x 9.08”x 14.2” (100 x 231 x 361 mm ) mounted with bracket

Weight: Stainless Steel 11lb (5.0kg), Aluminum 5.5lb (2.5kg)

Ingress Protection: IP66

Environmental Specifications

Operating Temperature: ‐40°F to +185°F (‐40°C to 85°C)

Extended Operating Temperature (by request): ‐76°F to +257°F (‐60°C to 125°C)

Storage Temperature: ‐76°F to +185°F (‐60°C to 85°C)

Humidity Range: 0 to 95% relative humidity (can withstand 100% condensing humidity for short periods of time)

Drilling and production platforms
• Shipping tankers, freighters, and other vessels
• Fuel loading facilities
• Refineries, bulk terminals, and tank farms
• LNG/LPG processing and storage facilities
• Compressor stations and pipeline facilities
• Petrochemical, paint, and fertilizer plants
• Power plants and gas turbine facilities
• Transportation facilities (airports and subways)
• Oil and gas fired boilers / furnaces
• Aircraft hangars

ITES Test Lamp

Simulates fire signal to test alarm response on our IPES detectors in the field without removing detectors from the application.

Protective Visor

Protects the flame detector from rain and direct sunlight damaging the optics.

Magnetic Collar

Disables signal outputs during flame/functional testing.

Mounting Bracket

Swivel mounting bracket offers an easy installation solution to mount IPES Flame detectors,
a tilt of up to +/-45deg in the vertical plane.

Vortex Air Shield

Keeps airborne particulates away from the detector and optical window on our IPES Flame Detectors.
